Types of Solar Panel Mounting Structures — Choose the Right System for Your Property

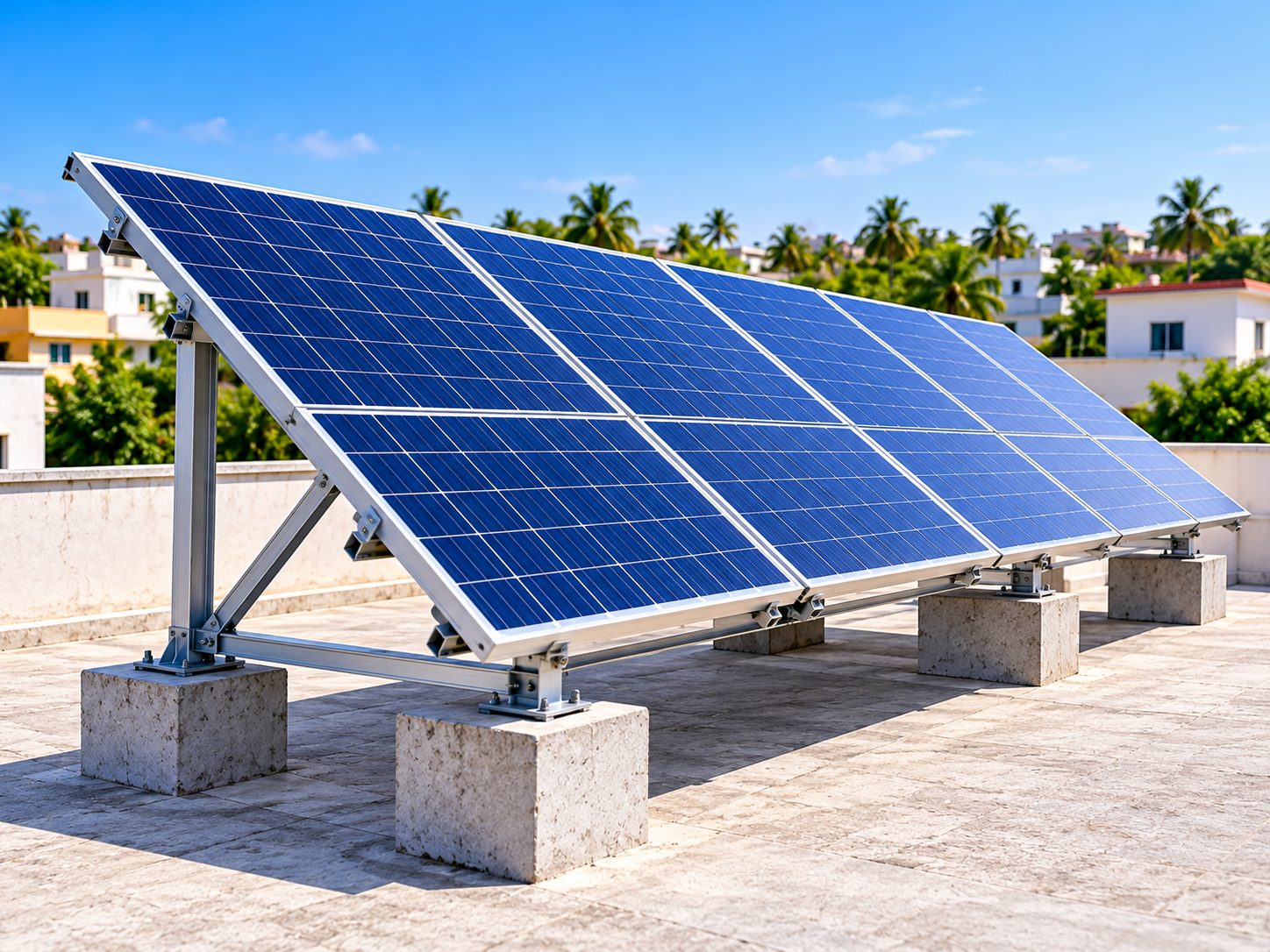

RCC roof solar installation is a common choice for Tamil Nadu independent houses with reinforced concrete terraces. Concrete roof solar mounting uses the existing RCC slab after a structural assessment. Solar panels sit on aluminium mounting frames, secured using engineered ballast or anchor bolts according to the roof condition and wind loads. A south-facing layout with a tilt around 10–15° is often a useful starting point, rather than a fixed prescription for every property. The final angle and spacing depend on shading, roof geometry and the engineer’s design. It suits residential systems around 1–10 kW where there is sufficient clear, structurally suitable roof area.

This arrangement provides straightforward access for cleaning and inspection and is the baseline for comparing other solar panel mounting structure types. Its trade-off is terrace space: rows need separation, safe walkways and clearance from water tanks, parapets and nearby buildings. Ballast adds weight, while anchored systems require carefully sealed roof penetrations. Neither method should be selected without a structural and waterproofing assessment. It is an ideal use case for a homeowner who has an open terrace and prioritises a practical, relatively economical mounting arrangement. Get a quote after a site survey rather than assuming all concrete roofs need the same structure.

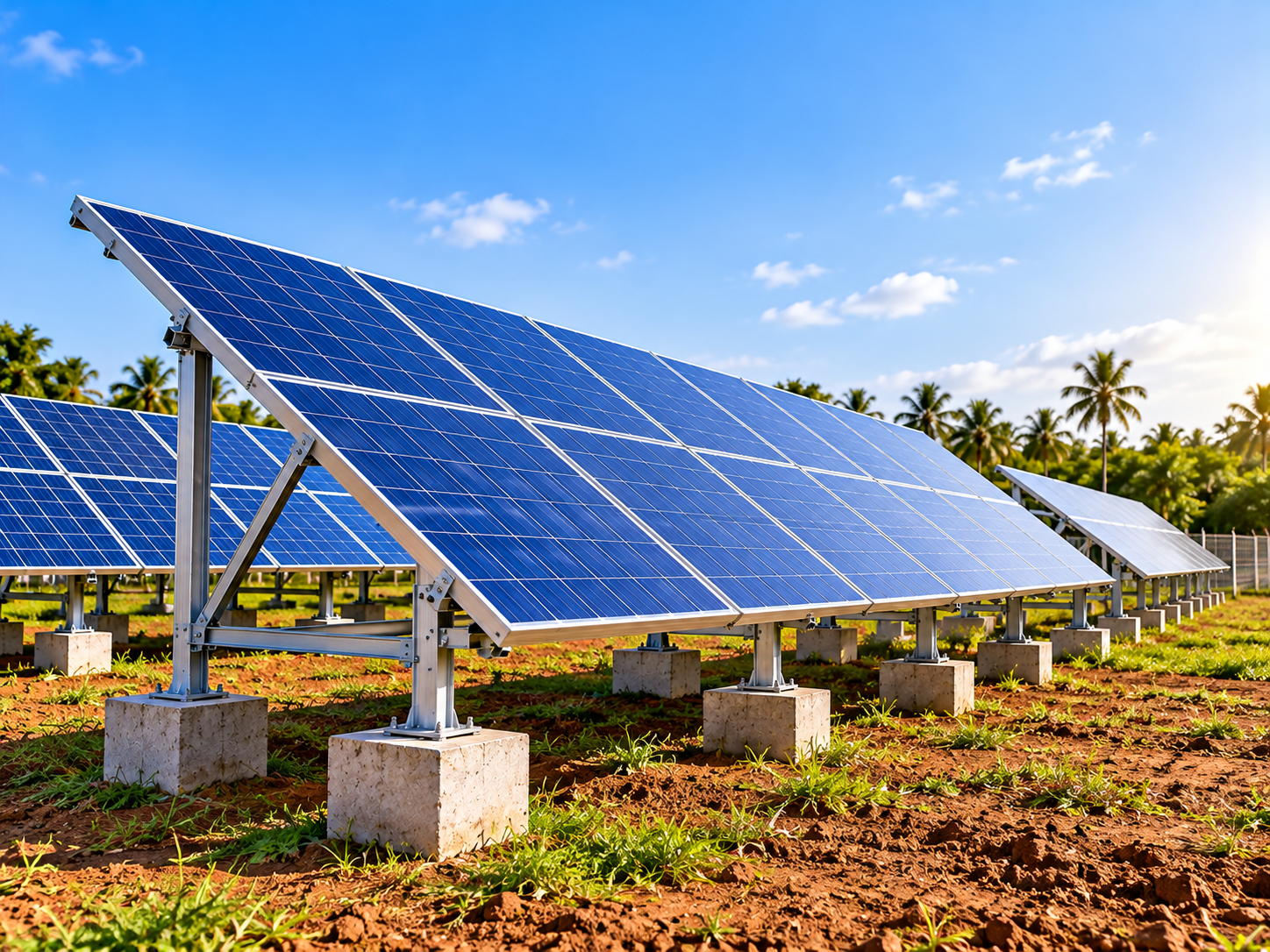

Ground mount solar installation Tamil Nadu landowners consider places panels on a ground mounted solar structure in an open plot rather than on a building. Arrays may be raised around 4–6 ft above ground, subject to the site design, drainage and access needs. Farms, factories and large campuses with available land can use this approach when their roofs are unsuitable or insufficient. It is particularly worth assessing for systems of 25 kW and above, although size alone does not determine feasibility. Soil conditions, flooding risk, cable routes and the distance to the electrical connection all affect the layout and civil works.

Open land allows optimised orientation, tilt and row spacing, which can improve generation where a roof imposes shading or direction constraints. It does not automatically guarantee the highest output at every site. The trade-offs are land use, foundations, fencing, vegetation control and security, alongside cleaning and maintenance access. Relative to standard rooftop mounting, civil and site-development costs can increase the investment, especially on difficult ground. The ideal use case is secure, unshaded land close to electricity demand, with a long-term plan for that land. Ask for an engineered proposal and quote before reserving space for a ground-mounted plant.

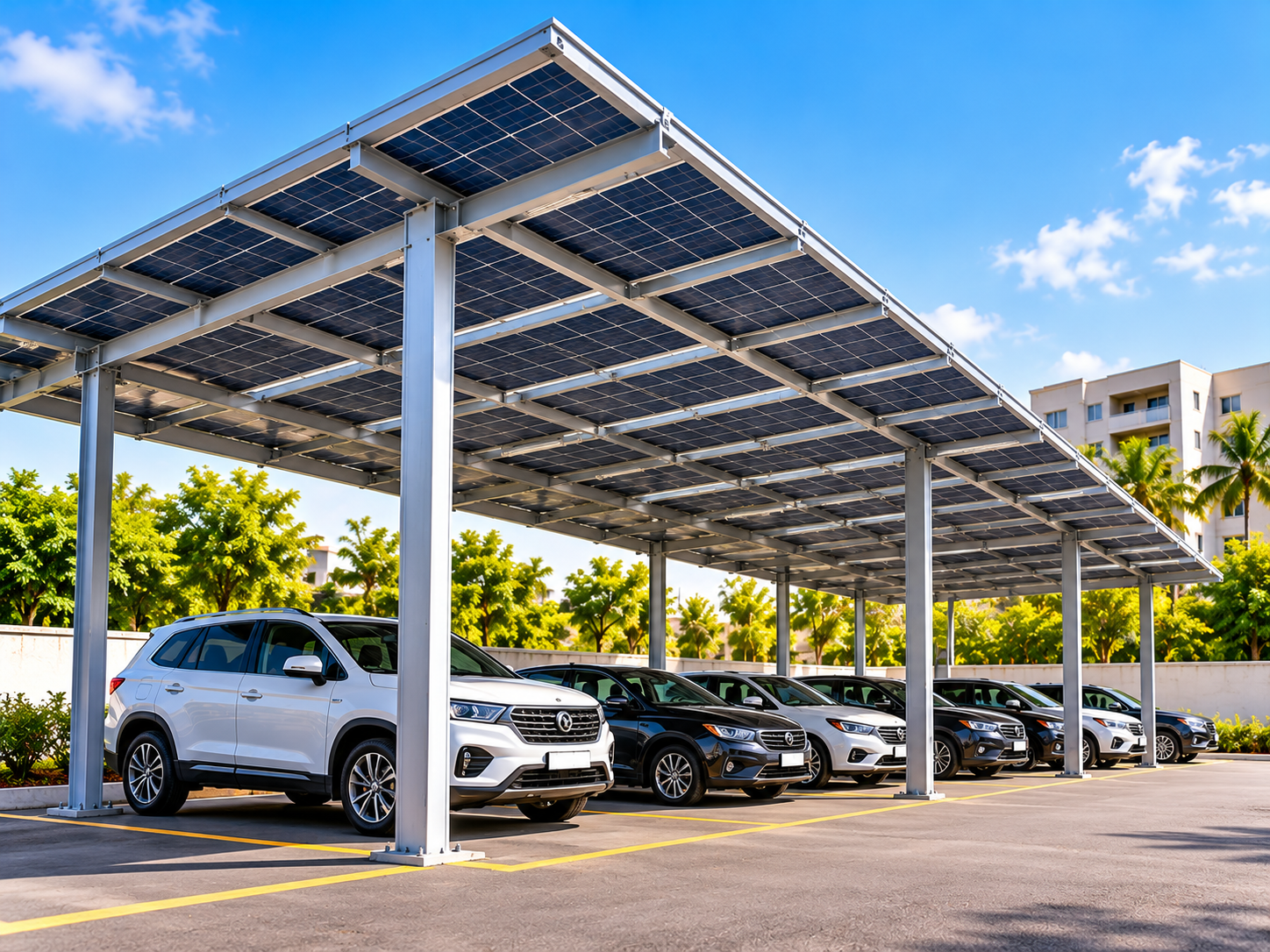

Solar carport Chennai projects combine shaded parking with electricity generation. Carport solar installation turns a solar parking shed into a dual-purpose asset. Panels can replace or supplement a parking-shed roof, provided the supporting design meets the necessary loads, clearances and weather-protection requirements. Commercial campuses, apartment complexes and institutional parking areas are natural candidates because they already need covered outdoor space. The structure must accommodate vehicle height, turning space and pedestrian movement while keeping columns and electrical equipment out of circulation routes. Gutters, drainage, lighting and cable protection should be planned with the solar layout, not treated as afterthoughts once the panels are installed.

The benefit is dual use of parking space without consuming the building’s roof. Additional civil work and supporting steel make a new carport usually more expensive than panels on a suitable rooftop. If covered parking is required anyway, comparing the combined shed-and-solar scope can be more meaningful than comparing panel mounting alone. GenSolar can scope civil and solar EPC together, with responsibilities recorded in the project proposal. This option suits an owner planning a new parking shelter or replacing an ageing shed. A survey should confirm foundations, waterproofing expectations, electrical integration and vehicle clearances before a quotation is finalised.

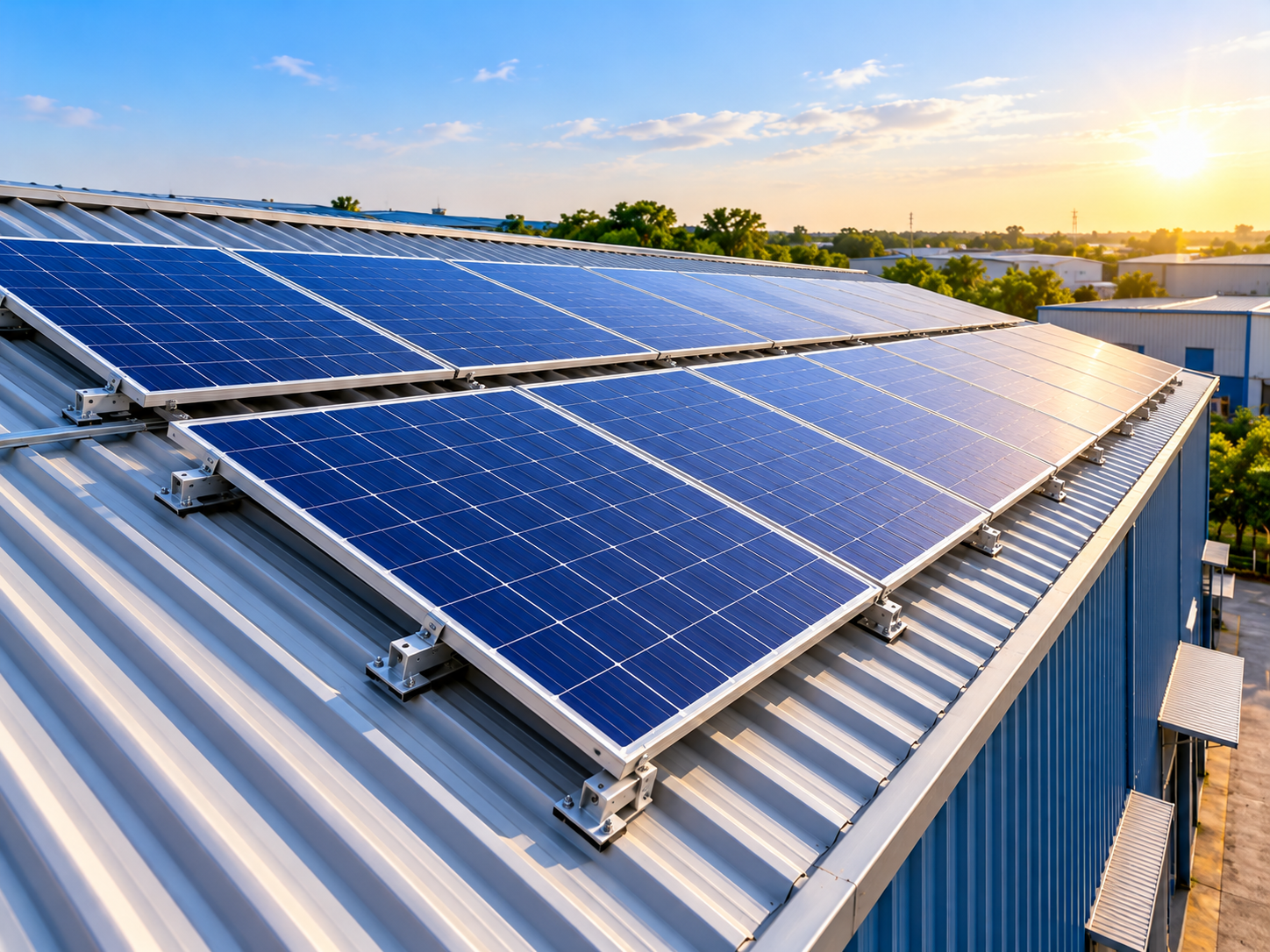

Shed mount solar uses mounting rails and roof-compatible clamps rather than a terrace-style frame. Sheet roof solar installation and factory shed solar projects adapt the mounting system to the existing industrial or warehouse roof. L-foot attachments can suit some profiled metal roofs, while standing-seam clamps may attach without piercing the sheet when the roof system allows it. Factories, warehouses, cold storage facilities, poultry farms and godowns can benefit from their large roof areas. The array normally follows the roof pitch. Before work starts, the installer must inspect the sheet condition, supporting purlins, fastening arrangement and roof load capacity; thin, corroded or asbestos-containing roofing needs a separate assessment.

On a compatible roof, this can be a quick, economical commercial mounting option because an additional elevated structure is often unnecessary. Roof repair, strengthening, safety access or replacement can change that comparison substantially. Installation must protect waterproofing and allow for thermal movement, drainage and safe maintenance. GenSolar’s commercial portfolio includes Altop in Tumkur at 300 kW, Best Corrugators in Mysore at 300 kW, and Brundavana Rice Mill in Raichur at 250 kW. These are real manufacturing project references, not evidence that every factory roof has identical construction. Review the case studies and request a roof survey to confirm the appropriate clamp and rail system.

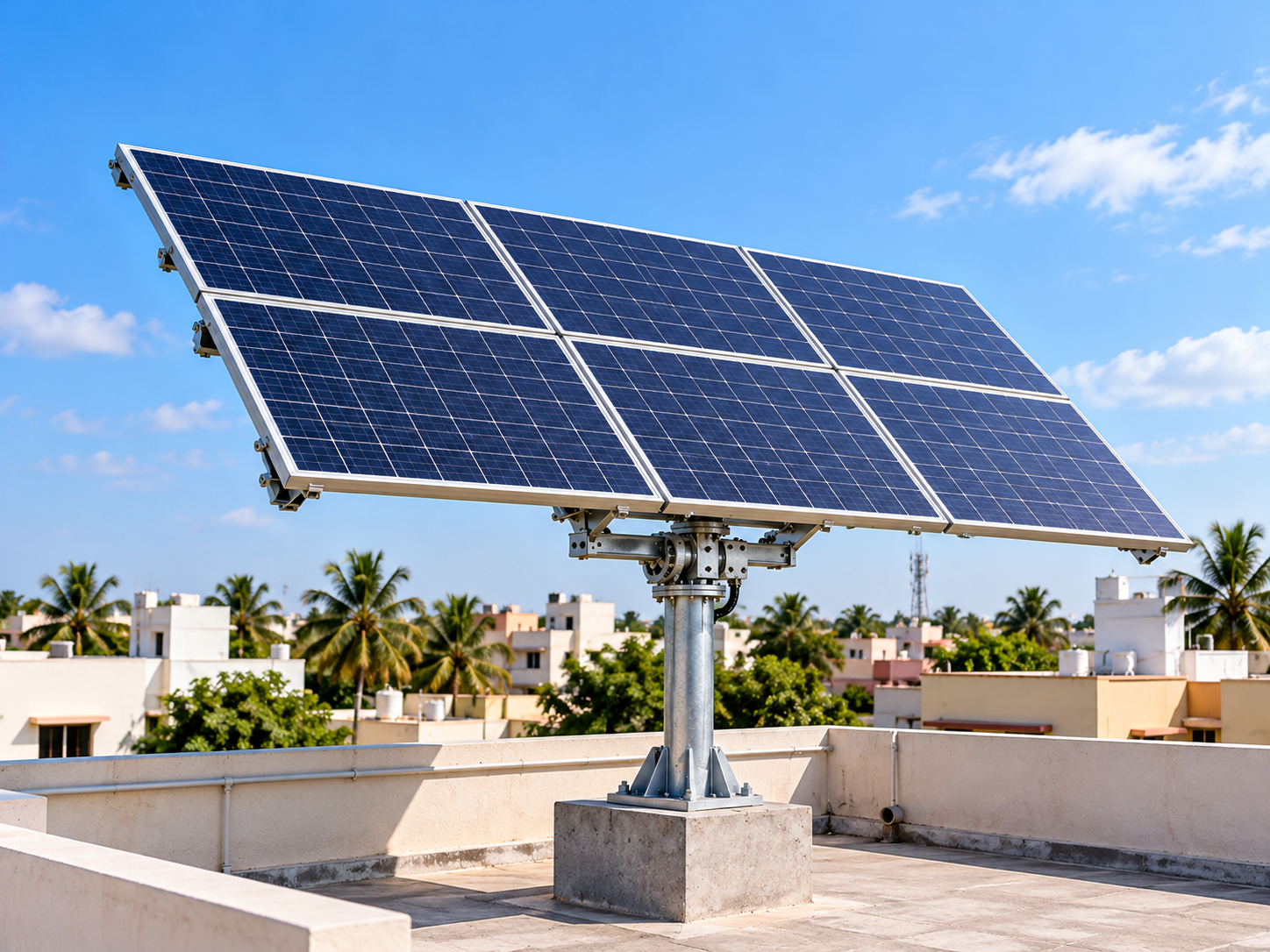

A solar tracking structure follows the sun through the day to maximise generation. A single axis solar tracker India project rotates the array on one axis, while a dual axis solar tracker adjusts both its horizontal direction and tilt. A sun tracking solar panel system can generate around 20–40% more energy than a comparable fixed-tilt array under suitable conditions. This is a planning estimate, not a guaranteed gain: tracker type, location, shading, weather, spacing and energy used by the mechanism affect the result. Ground-mount commercial and industrial sites, solar farms and large campuses with open, unshaded land are the best candidates.

Tracker based solar installation Tamil Nadu projects use premium technology with a higher upfront cost. An indicative 30–50% tracker/mounting premium is a planning comparison, not a fixed increase in the complete system price. The minimum viable size is typically 10 kW+ to justify tracker cost, subject to site economics. Higher generation can support faster payback on large installations, but this must be checked against the extra investment, electricity tariff and maintenance rather than promised. Moving parts, drives and controls need slightly more maintenance than fixed mounts, with suitable wind-stow protection and inspection access. GenSolar can engineer and install tracker-based systems for ground-mount commercial projects after assessing land, foundations, tracker design and projected output. Request a site-specific proposal and quote.

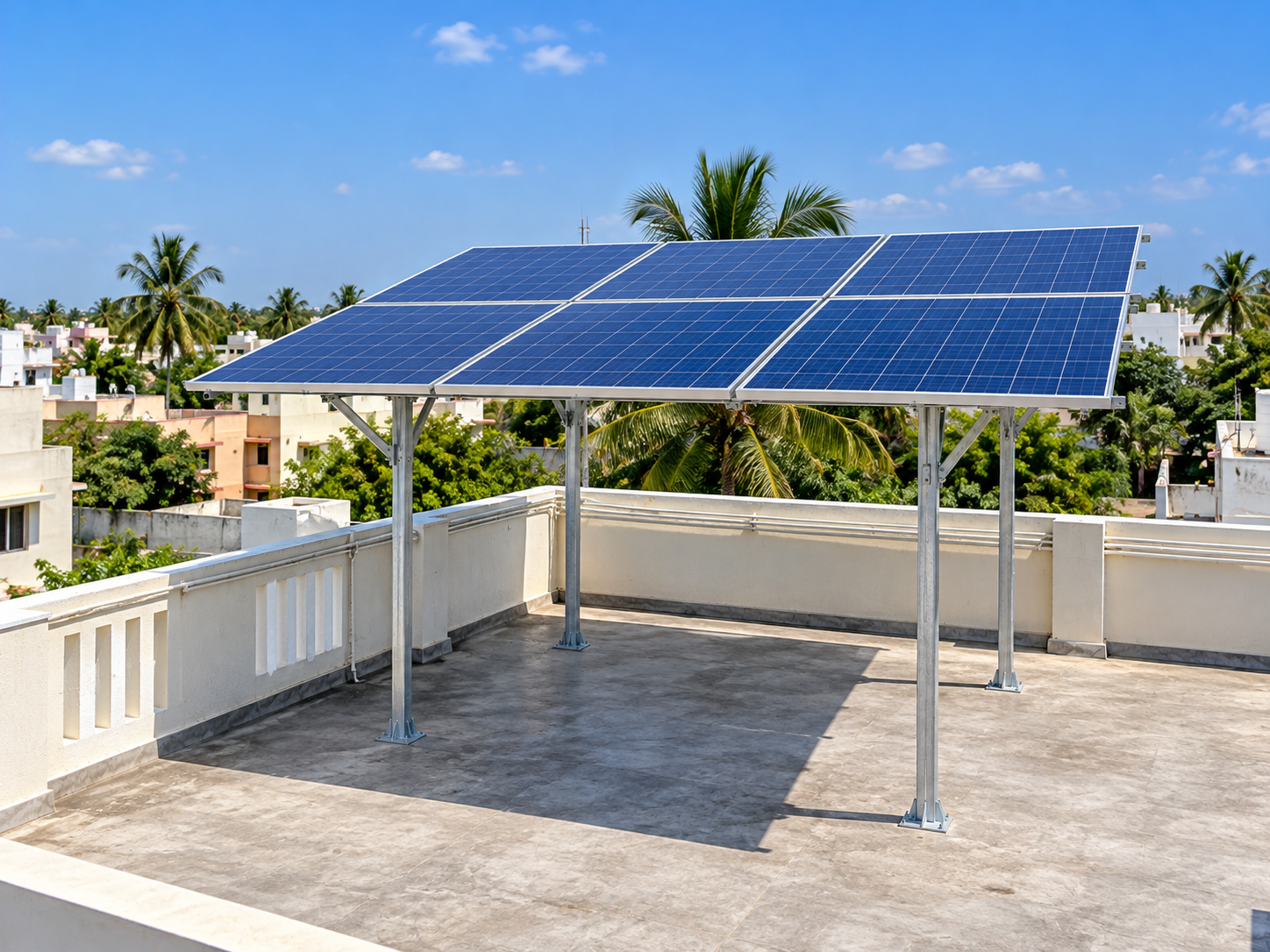

A high rise solar mount in Tamil Nadu raises the array above the terrace on a steel framework, with a planned elevation range of 6–9 ft where the engineering design permits. An elevated solar structure 6 feet high can preserve everyday terrace use, while a 9 feet solar panel structure Chennai homeowners consider needs site-specific foundations, bracing and wind-load checks. The space below can remain available for movement, drying clothes or access to water tanks, with safe clearances planned before installation. For Chennai independent homes with an actively used terrace, this can be more useful than a low-level array. People searching for high rise solar panel installation Chennai often mean this raised mounting arrangement; mounting on an actual high-rise building also requires a building-specific wind and structural assessment.

Preserving terrace utility is the main benefit, but taller structures need more steel, suitable foundations, corrosion protection and bracing. As a planning comparison, the mounting structure can cost around 15–25% more than standard flat mounting; this is not a guaranteed increase in the complete solar-system price. Height, spans, steel specification and site access determine the quotation. Wind uplift is especially important, and an existing terrace slab must not be assumed capable of supporting additional loads. Choose this type when usable space below the panels justifies the engineering and material premium. A free site visit can establish the safe height and layout.

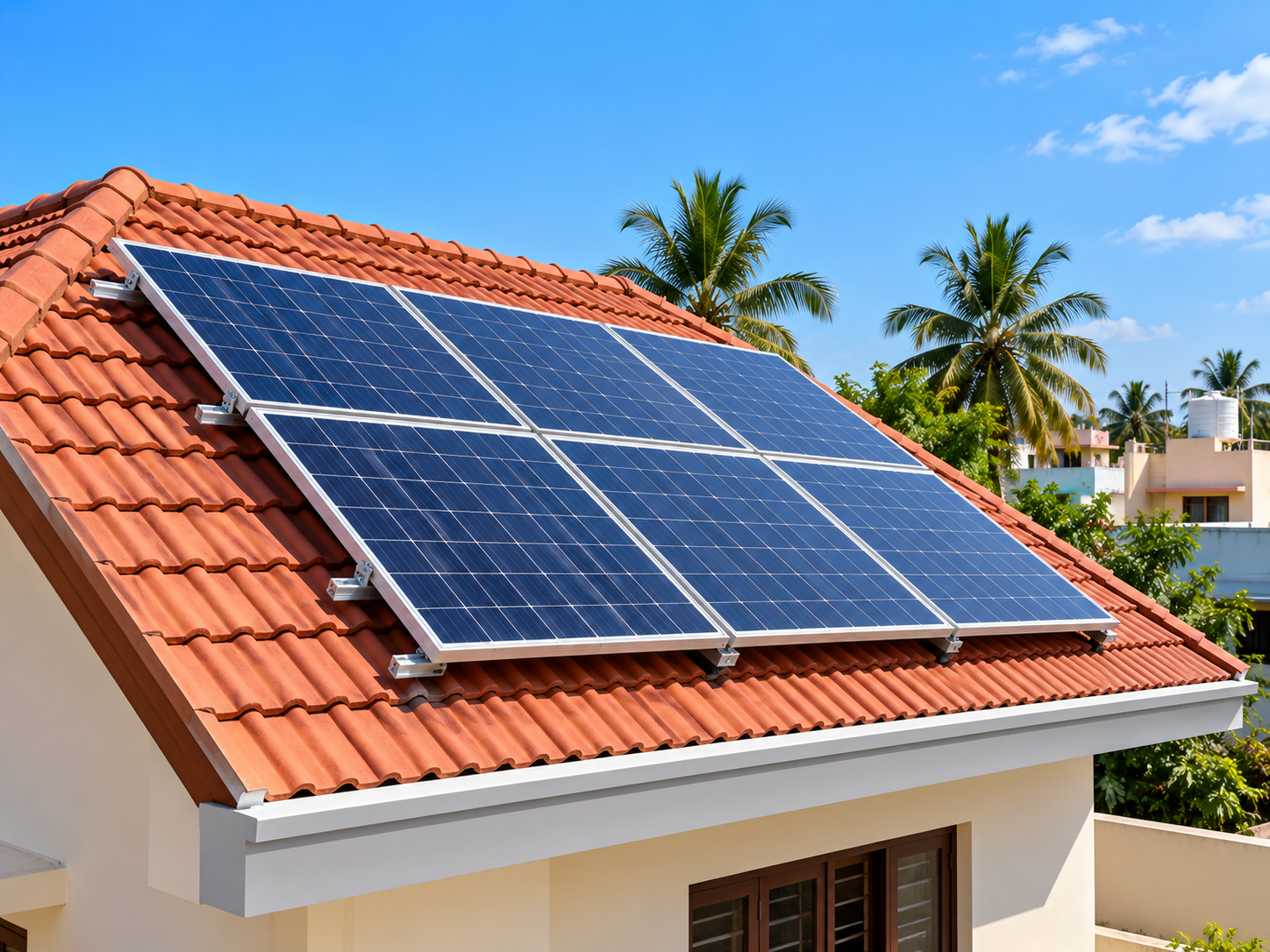

Tiled roof solar installation Chennai homeowners consider typically involves rails and specialised hooks fixed to the supporting roof structure, rather than loading fragile tiles directly. Mangalore tiles, Spanish tiles and sloped concrete roofs require different fixing details. Panels usually follow the roof angle, so generation depends on the slope’s direction, pitch and exposure to shade. A favourable unshaded slope can be useful, but a steep or poorly oriented roof may need a different layout. A roof inspection should check tile condition, timber or steel supports, waterproofing and the available maintenance access before selecting a mounting system.

An existing sloped roof can be used without taking over a separate terrace. Preserving weather protection is essential: misplaced hooks, broken tiles or poorly sealed penetrations can cause leakage. Experienced installation and appropriate flashing are important, and brittle tiles may need replacement. Specialist hardware and difficult access can make this costlier than flat mounting; the premium depends on the roof rather than a universal percentage. The ideal use case is a house with a sound, well-oriented tiled roof whose owner wants solar without changing the roof form. Get a site-specific quote covering roof preparation, mounting and safe installation access.

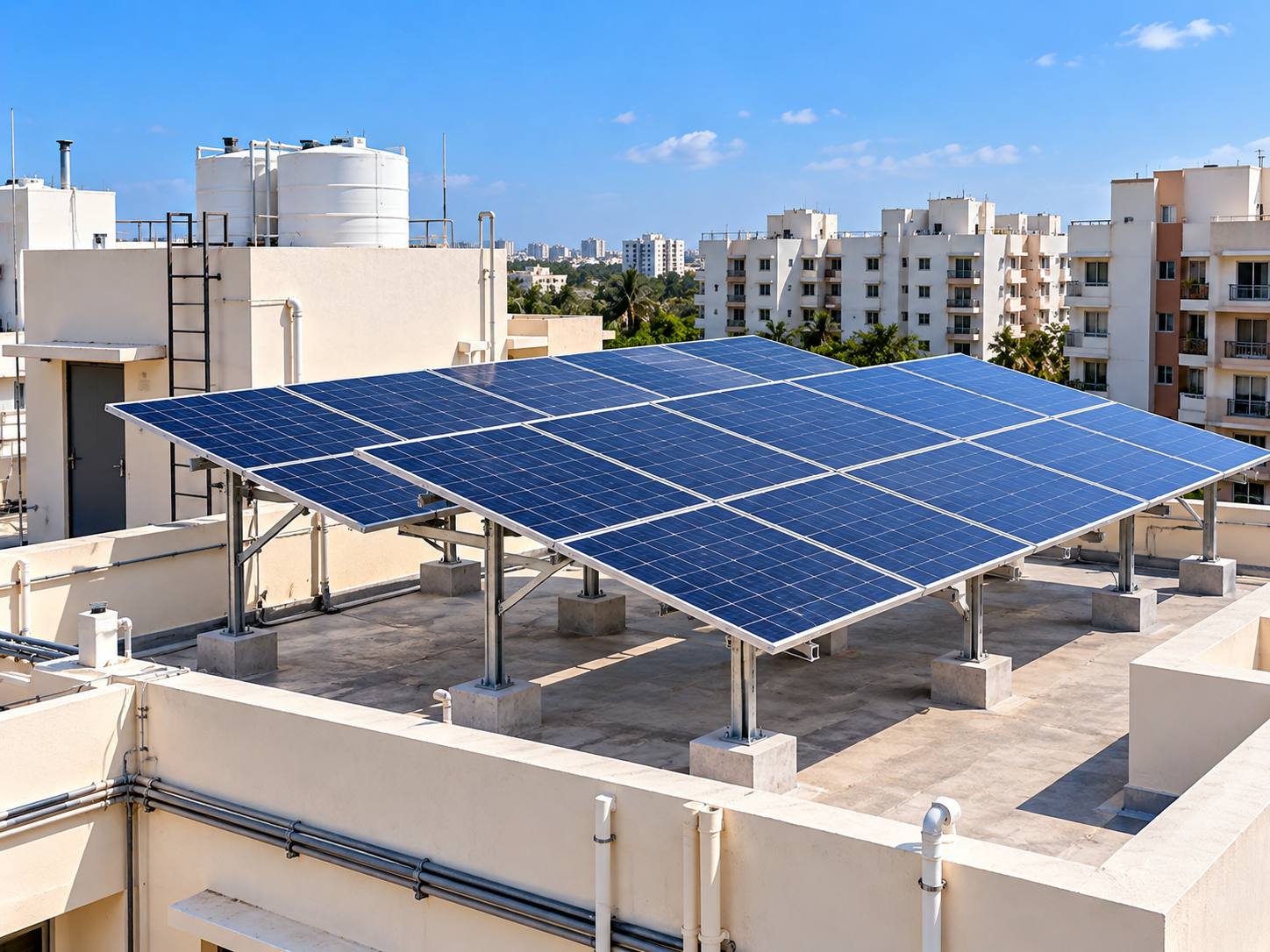

Apartment common-area solar uses the shared rooftop to offset electricity consumed by lifts, water pumps, common lighting and basement ventilation. The mounting arrangement may be flat or elevated, depending on terrace use, roof strength and shading. The important difference is the electricity connection and ownership arrangement: a common-area plant does not automatically reduce each resident’s separate household bill. Housing societies should review their common-meter consumption, available roof rights and internal approval process before choosing the system size. Safe routes to tanks, lift rooms, fire-safety equipment and other shared services must remain accessible.

A society can purchase the plant through CAPEX or explore RESCO/OPEX. Under an eligible OPEX agreement, the developer funds and operates the plant; the society buys generated electricity at the agreed per-unit tariff rather than purchasing equipment upfront. Availability, tariff savings, contract length and minimum consumption are subject to assessment and the signed power-purchase agreement; zero upfront investment is not automatic for every building. A society with consistent daytime common-area demand and enough unshaded roof space is an ideal candidate. Compare long-term tariffs, maintenance duties and roof-access conditions alongside mounting costs. Read GenSolar’s OPEX solar model page and book a site visit for a suitable proposal.
